HZ9VDSB4, Flat duct
£29.99
Available from 15th July 2025
- Manufacturer Guarantee2 years
- EAN4242003900253

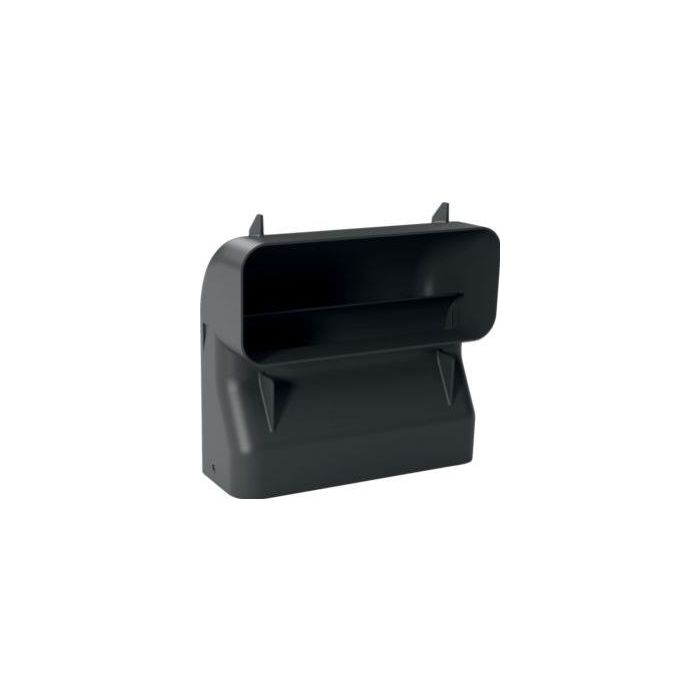

- Vertical 90° bow with very small radius for ductings within the furniture (from on 60cm worktop depth)
- 90° flat duct bend element (male) in vertical configuration with small radius
- Aerodynamically optimised design to minimise pressure loss and maximise air flow rate. Easy-to-cut & easy-to-connect via the female connector sleeve element.
- The element complies with the Needle Flame Test (according to IEC 60695-11-5) & the V2 flammability class (according to UL94).
| Manufacturer | Siemens |
|---|---|
| GTIN | 4242003900253 |
| Model Number | HZ9VDSB4 |
| Height of the packed product | 115 mm |
| Width of the packed product | 230 mm |
| Depth of the packed product | 220 mm |
| Net weight | 0.350 kg |
| Gross weight | 0.540 kg |
| USP information 1 | <strong>Vertical 90° bow with very small radius for ductings within the furniture (from on 60cm worktop depth)</strong> |
| USP information 2 | <strong>90° flat duct bend element (male) in vertical configuration with small radius</strong> |
| USP information 3 | <strong>Aerodynamically optimised design to minimise pressure loss and maximise air flow rate. Easy-to-cut & easy-to-connect via the female connector sleeve element.</strong> |
| USP information 4 | <strong>The element complies with the Needle Flame Test (according to IEC 60695-11-5) & the V2 flammability class (according to UL94).</strong> |
| Product Image | 16544274_90__flat_duct_60cm_cooktop_STP_def.jpg |
| Is Soft Bundle | No |
