DWB96DM50B, Wall-mounted cooker hood
£589.00
Available from 2nd December 2025
- ColourBrushed steel
- Energy RatingB
- Manufacturer Guarantee2 years
- EAN4242005051120
Key performance features:
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Maximum extraction rate exhaust air 372 m³/h according to EN 61591
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 372m³/h
- Intensive 604 m³/h
- Noise max. Normal Level: Noise, max. speed in normal us: 60 dB dB*
- TouchControl with Electronic display
- Electronic display
- 3 power levels & intensive setting
- 2 x 1.5W LED light
- Colour Temperature: 3500 K
- Automatic intensive revert (6mins)
- 3 removable metal grease filter cassettes
- Installation: wall
- Chimney extractor hood
- TouchControl
- Electronic control
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Max. extraction rate: 604 m3/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 60dB(A) re 1 pW
- Intensive: 70 dB(A) re 1 pW
- With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
- Extraction rate in recirculation mode:
- Max. normal use: 337m³/h
- Intensive: 441m³/h
- Noise level in recirculation mode:
- Max. normal use: 70dB(A) re 1 pW
- Intensive: 74 dB(A) re 1 pW
- Power rating: 220 W
- Light Intensity: 214 lux
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 635-965 x 900 x 500 mm
- Dimensions recirculating (HxWxD): 635-1075 x 900 x 500 mm
- Dimensions recirculating with CleanAir module (HxWxD):
- 703 x 900 x 500mm - mounting with outer chimney
- 833-1163 x 900 x 500 mm - mounting with telescopic chimney
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 48.5 kWh/year*
- Recirculating kit DHZ1225
| Manufacturer | Bosch |
|---|---|
| GTIN | 4242005051120 |
| Colour | Brushed steel |
| Model Number | DWB96DM50B |
| Energy Rating | B |
| Electrical connection rating | 220 W |
| Length of electrical supply cord | 130.0 cm |
| Height of the product | 53 mm |
| Width of the product | 900 mm |
| Depth of the product | 500 mm |
| Height of the packed product | 490 mm |
| Width of the packed product | 650 mm |
| Depth of the packed product | 1030 mm |
| Net weight | 12.7 kg |
| Gross weight | 18.1 kg |
| Noise level | 60 dB re 1 pW |
| USP information 1 | <strong>Especially silent: maximum hood performance, minimum noise.</strong> |
| USP information 2 | <strong>TouchSelect control: Quickly select hood settings via touch.</strong> |
| USP information 3 | <strong>Intensive speed setting: removes strong kitchen odours quickly and effectively.</strong> |
| USP text indicating a statement of the main highlight or highlights of the product. | Box design hood: performance and matching kitchen design complete in one hood. |
| Construction type | Built-in |
| Installation type | Wall-mounted |

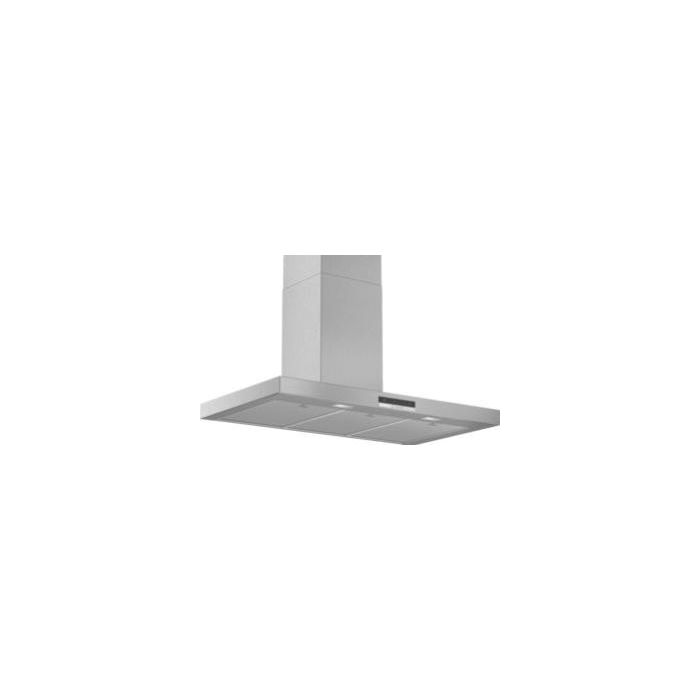

| Product Image | MCSA02017908_DWB96DM50_ChimneyHood_Bosch_STP_def.jpg |
| Colour body | Stainless steel |
| Energy efficiency class | B |
| Total annual energy consumption | 48.5 kWh/year |
| Noise level with boost position | 70 dB re 1 pW |
| Boost position air extraction | 604 m³/h |
| Boost position output recirculating | 441 m³/h |
| Number of lights | 2 |
| Diameter of air outlet | 120 / 150 mm |
| Number of speed settings; boost option availability | 3-stages + intensive setting |
| Is Soft Bundle | No |
